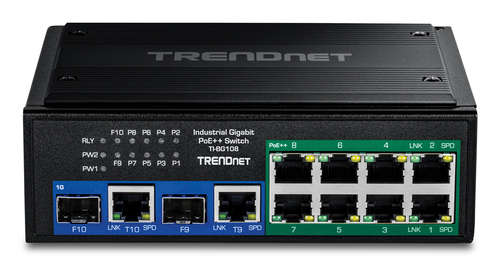

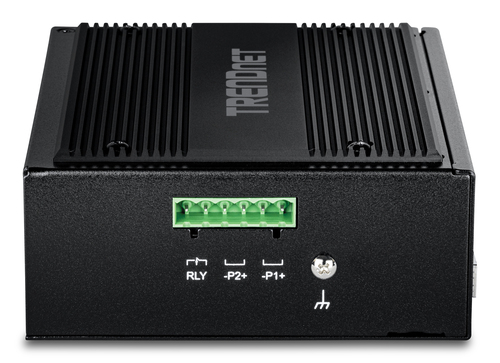

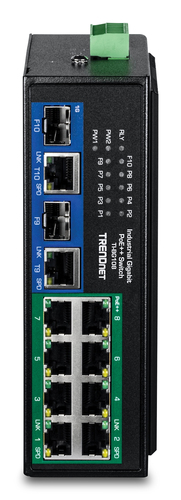

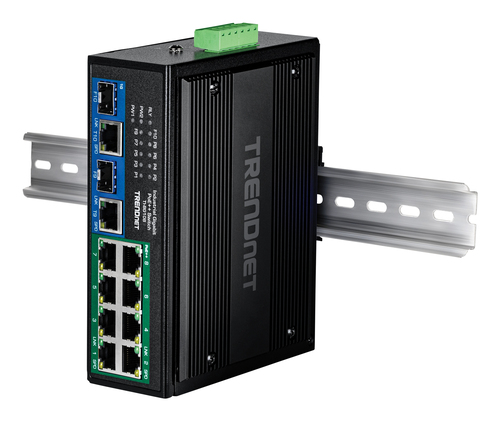

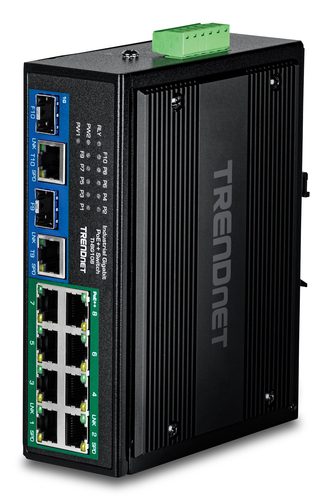

Trendnet TI-BG108 network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

TRENDnet's 10-Port Industrial Gigabit 400W PoE++ DIN-Rail Switch, model TI-BG108, delivers network connectivity to rugged environments, while saving you on installation costs and setup time using Power over Ethernet technology. The industrial PoE++ switch features a rugged IP50 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). This hardened industrial PoE++ switch features copper gigabit PoE++ ports for high-powered device connections, and SFP ports that support 1000Base-FX modules for long-distance fiber networking applications.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Gigabit PoE++ DIN-Rail Switch by delivering up to 95W per port of PoE power and data over existing Ethernet cables. With PoE technology inside this industrial PoE++ switch, users only need one cable to deliver both data and power. Easily network PoE devices to this hardened industrial PoE++ switch, such as high-power wireless access points, IP cameras, VoIP phone systems, IPTV decoders, and access controls.

ON ORDER

SKU: TI-BG108

Manufacturer: Trendnet Trendnet

RRP Price €529.21

Specifications

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity
2

Network

Networking standards
IEEE 802.2x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3z
10G support
No
Full duplex
Yes
Half duplex
Yes
Auto-negotiation
Yes

Data transmission

Switching capacity
20 Gbit/s
Forwarding rate
8.9 Mpps
MAC address table
11000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
10000
Packet buffer memory
0.4 MB

Design

Product colour
Black
Housing material
Metal
International Protection (IP) code
IP50
Wall mountable
Yes
DIN rail mounting
Yes

Performance

Mean time between failures (MTBF)
515469 h

Power

Power source
DC/PoE
DC input voltage
48 - 56 V
Power consumption (max)
8.5 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) type supported
PoE++ (4PPoE)
Power over Ethernet 4PPoE (PoE++) ports quantity
8
Total Power over Ethernet (PoE) budget
400 W

Operational conditions

Operating temperature (T-T)
-40 - 75 °C

Weight & dimensions

Width
156 mm
Depth
122 mm
Height
48 mm
Weight
602 g

Certificates

Certification
CE FCC
